What’s SMT Stencils

An SMT stencil, also known as steel mesh or steel template, is a metal fixture used in SMT assembly. Its main function is to accurately transfer a defined volume of solder paste onto PCBs, which directly determines solder paste printing quality. Stencils are manufactured by laser cutting or chemical etching to form precise apertures on thin metal sheets. The metal foil is stretched and fixed onto an aluminum frame to achieve the required working size.
SMT PCB assembly is a core process in modern electronic manufacturing. As circuit boards become widely adopted, PCB assembly involves multiple complex procedures and brings many technical challenges.
Every stage of SMT manufacturing demands high-level process control. Common risks include quality deviations and performance degradation caused by high temperature during production. These issues may extend lead times and harm product reliability. Therefore, partnering with a professional and stable manufacturer becomes extremely critical.

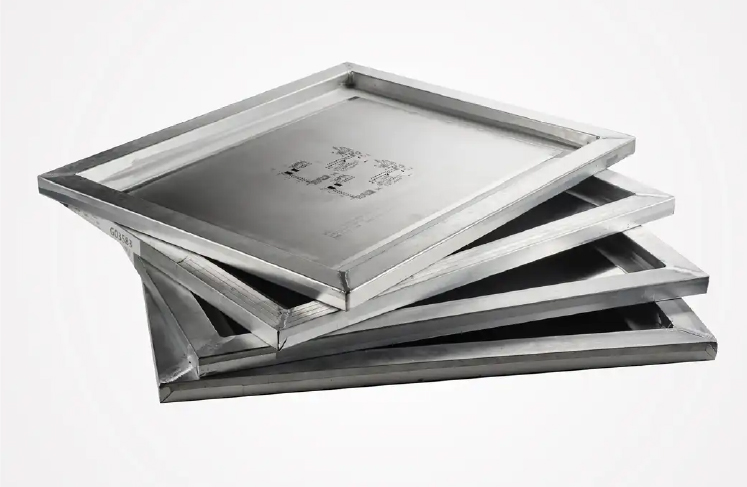

Introduction of SMT stainless steel stencil for solder paste printing

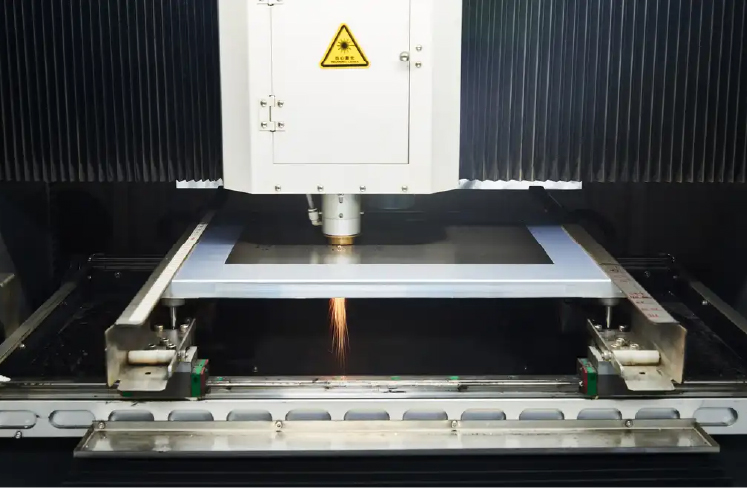

Bestech custom laser cut SMT stencil service

Our SMT Stencils Service

Bestech supplies high-precision laser-cut SMT stencils and customized tooling solutions to optimize your PCB assembly workflow. Our advanced laser cutting equipment guarantees accurate aperture geometry and smooth hole sidewalls for stable, consistent solder paste deposition.
With more than ten years of experience in PCB & PCBA manufacturing, we fully recognize that high-quality stencils are essential to form reliable solder joints. Our stencils are fabricated from premium stainless steel and pass strict quality inspection to satisfy rigorous requirements of contemporary electronics assembly.
Our SMT stencils meet strict industrial standards with excellent registration accuracy and cutting precision. Featuring positional tolerance of ±2μm and repeat positioning accuracy of ±3μm, they deliver ideal conditions for solder paste printing, even for ultra-miniature high-density components such as micro BGA and QFN.

SMT Stencil Specifications

Base Material Stainless Steel
Stencil Type Framed and Frameless
Stencil Thickness 0.001 - 0.016 inches
Minimum Aperture Width 0.002 inches
Maximum Stencil Outer Size 29" × 29"
Max PCB Size for SMT Production 460mm(W) × 1200mm(L)
Max PCB Thickness 4.2mm
Min PCB Thickness 0.38mm
Largest Component Dimension 50mm × 50mm
Minimum Lead Pitch 0.3mm
Minimum BGA Ball Pitch 0.3mm
Minimum BGA Ball Diameter 0.3mm
  • • Custom aperture modification available
  • • Aperture tolerance: ±0.00025 inches
  • • Support fiducial mark data
  • • Support panelized PCB data

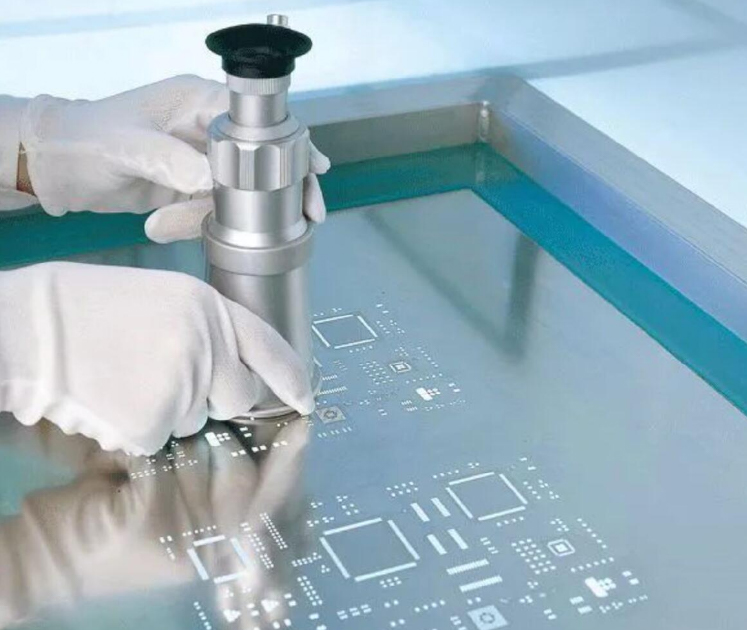

SMT stencil technical parameters and production capacity

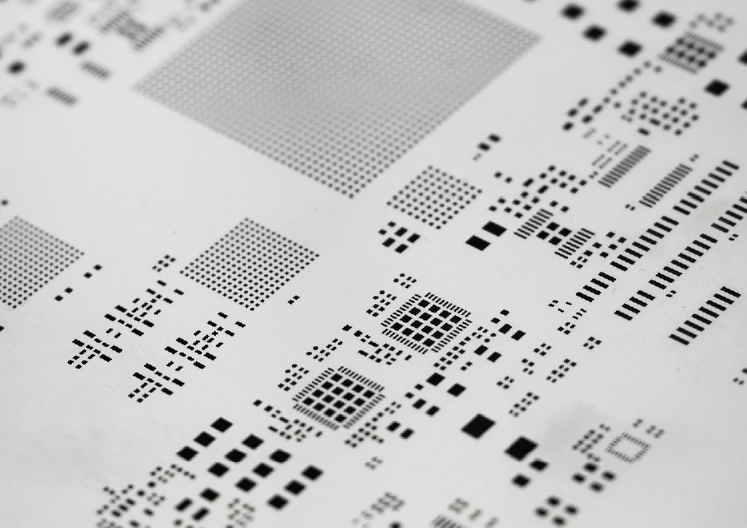

Advantages of Bestech custom SMT stencil service

Why Choose Our SMT Stencils Service

Bestech focuses on supplying precision SMT stencils and matching tooling complying with top-tier industry standards. Equipped with advanced laser cutting equipment and complete quality control workflows, we guarantee stable performance and reliability for your PCB mass assembly.

Advanced laser cutting technology for superior stencil quality
Our modern laser cutting systems produce precise apertures with smooth inner walls, enabling excellent solder paste release and consistent printing results. Every finished stencil undergoes full dimensional inspection to match your technical specifications.

Comprehensive QA System & International Certifications
We operate under ISO 9001:2015, ISO 13485:2016 and relevant IPC standards. Our quality control covers dimension verification, surface inspection and aperture wall smoothness testing to ensure reliable stencil quality.
24/7 After-sales Support
Bestech manufactures high-quality SMT stencils with competitive pricing. We arrange synchronized delivery so your stencils arrive together with your PCBs to save your waiting time.

Fill out the quotation form with your requirements and quantity, upload relevant design documents, and we will send you a free quotation promptly!

You may also send PCB design files and specifications to info@bestechpcba.com and request stencil quotation simultaneously. Our dedicated engineers and sales representatives will review your request and reply within 24 hours.
